Kärcher HD 10/25-4 S Three-Phase Cold-Water Pressure Washer
A professional pressure washer for demanding equipment and vehicle cleaning, with adjustable working pressure of 80–250 bar and flow of 500–1,000 L/h. This model requires a three-phase 376–424 V, 50 Hz supply.
- Power supply
- Three-phase
- Working pressure
- 80–250 bar
- Flow rate
- 500–1,000 L/h
Included components
EASY!Force Advanced gun, 1,050 mm lance, power nozzle, Servo Control and 10 m high-pressure hose.
Kärcher HD 10/25-4 S Three-Phase Cold-Water Pressure Washer
Product overview
A professional pressure washer for demanding equipment and vehicle cleaning, with adjustable working pressure of 80–250 bar and flow of 500–1,000 L/h. This model requires a three-phase 376–424 V, 50 Hz supply.
Pressure and water control
Servo Control adjusts pressure and water volume at the gun/lance connection. The maximum pressure rating is 280 bar; the supplied hose’s 315 bar rating is a separate component specification. This cold-water machine does not heat water; maximum inlet temperature is 60°C.
Motor, pump and monitoring
The four-pole low-speed motor uses air/water cooling. The pump has stainless-steel pistons and a brass head. Electronic monitoring and the LED status display support protection against supply faults, phase failure and leaks.
Transport, storage and servicing

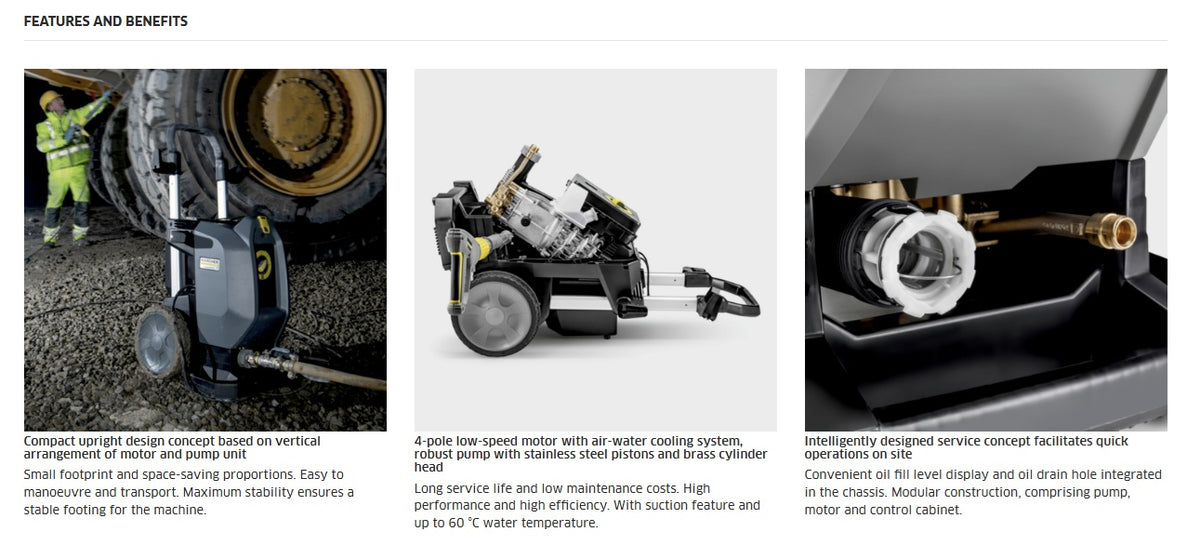

The upright aluminium-frame chassis has accessory storage, adjustable hooks and hose storage. The original technical images show the modular pump/motor layout, water filter and oil-level inspection points. Crane loading is supported when carried out according to the operating instructions.
Included equipment
EASY!Force Advanced spray gun, rotating 1,050 mm stainless-steel lance, power nozzle, Servo Control and 10 m premium DN 8 high-pressure hose. EASY!Lock connections simplify accessory changes.
Specifications
| Model | HD 10/25-4 S |
|---|---|
| Power supply | 3 phase / 376–424 V / 50 Hz |
| Flow rate | 500–1,000 L/h |
| Working pressure | 80–250 bar |
| Maximum pressure | 280 bar |
| Maximum inlet temperature | 60°C |
| Power rating | 8.8 kW |
| Power cable | 5 m |
| High-pressure hose | 10 m · DN 8 · 315 bar |
| Spray lance | 1,050 mm |
| Nozzle size | 047 |
| Water inlet | 1 inch |
| Colour | Anthracite |
| Weight with accessories | 69.8 kg |
| Packed weight | 78.1 kg |
| Dimensions (L × W × H) | 607 × 518 × 1,063 mm |
