Kärcher HD 5/11 EX Plus Classic Professional Pressure Washer
Model · 1.520-801.0
Compact professional cold-water pressure washer for vehicles, machinery, tools, yards and garden surfaces. The EX Plus configuration includes a manual hose reel and rotary dirt blaster, with 110 bar working pressure and a 500 L/h flow rate.
- Working pressure
- 110 bar
- Flow rate
- 500 L/h
- High-pressure hose
- 8 m
- Hose reel
- Included — manual
Included components
HD 5/11 EX Plus Classic machine with integrated manual hose reel, professional trigger gun, 840 mm spray lance, rotary dirt blaster and 8 m high-pressure hose.
Kärcher HD 5/11 EX Plus Classic Professional Pressure Washer
Product overview
Compact professional cold-water pressure washer for vehicles, machinery, tools, yards and garden surfaces. The EX Plus configuration includes a manual hose reel and rotary dirt blaster, with 110 bar working pressure and a 500 L/h flow rate.

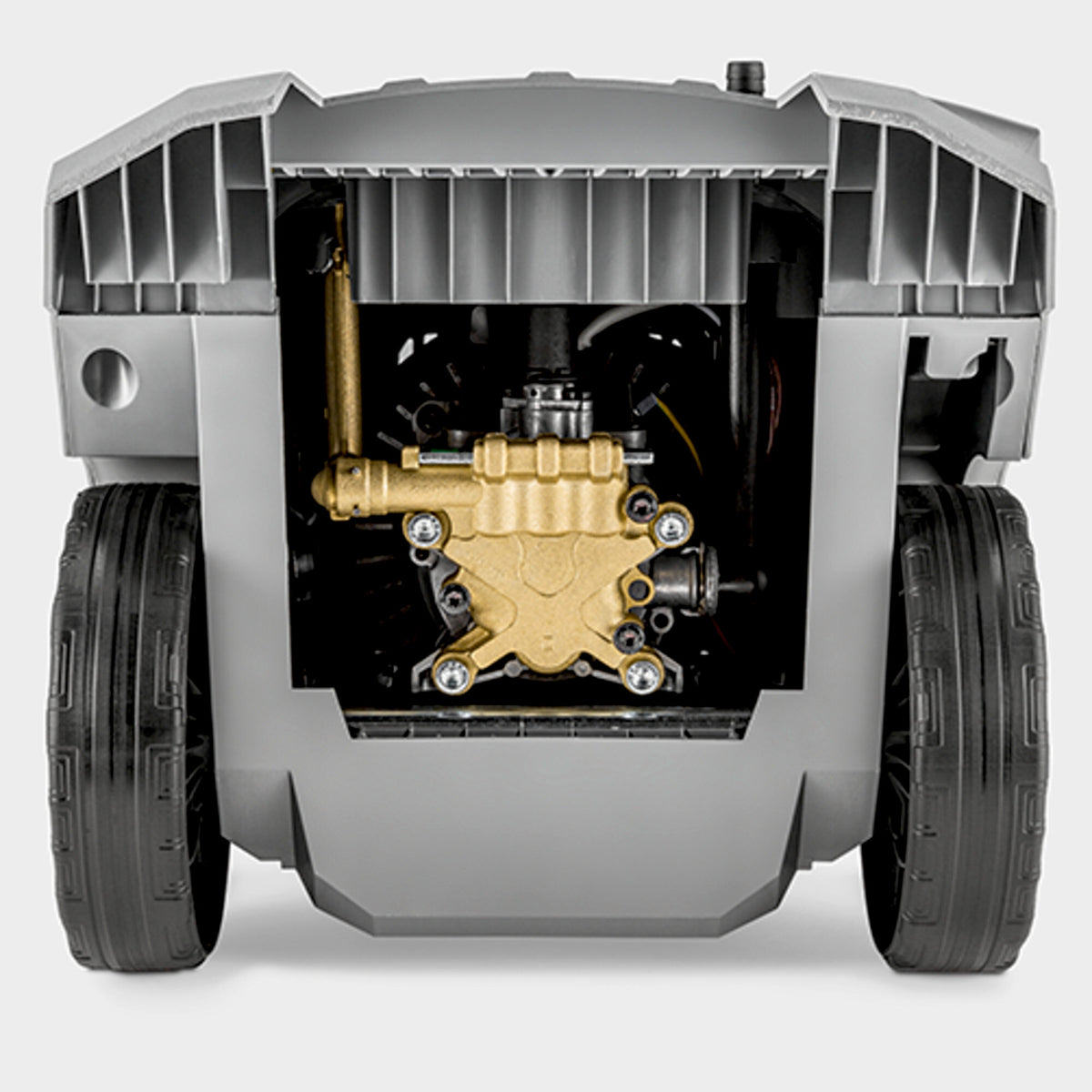

Robust pump construction
A brass cylinder head, ceramic-coated stainless steel plungers and automatic pressure relief help reduce component wear. The machine uses a three-piston axial pump with pressure cut-off.
8 m hose and 840 mm lance
The steel-reinforced high-pressure hose is 8 m long. A stainless steel spray lance measuring 840 mm provides reach for cleaning, with a professional trigger gun and rotary dirt blaster.

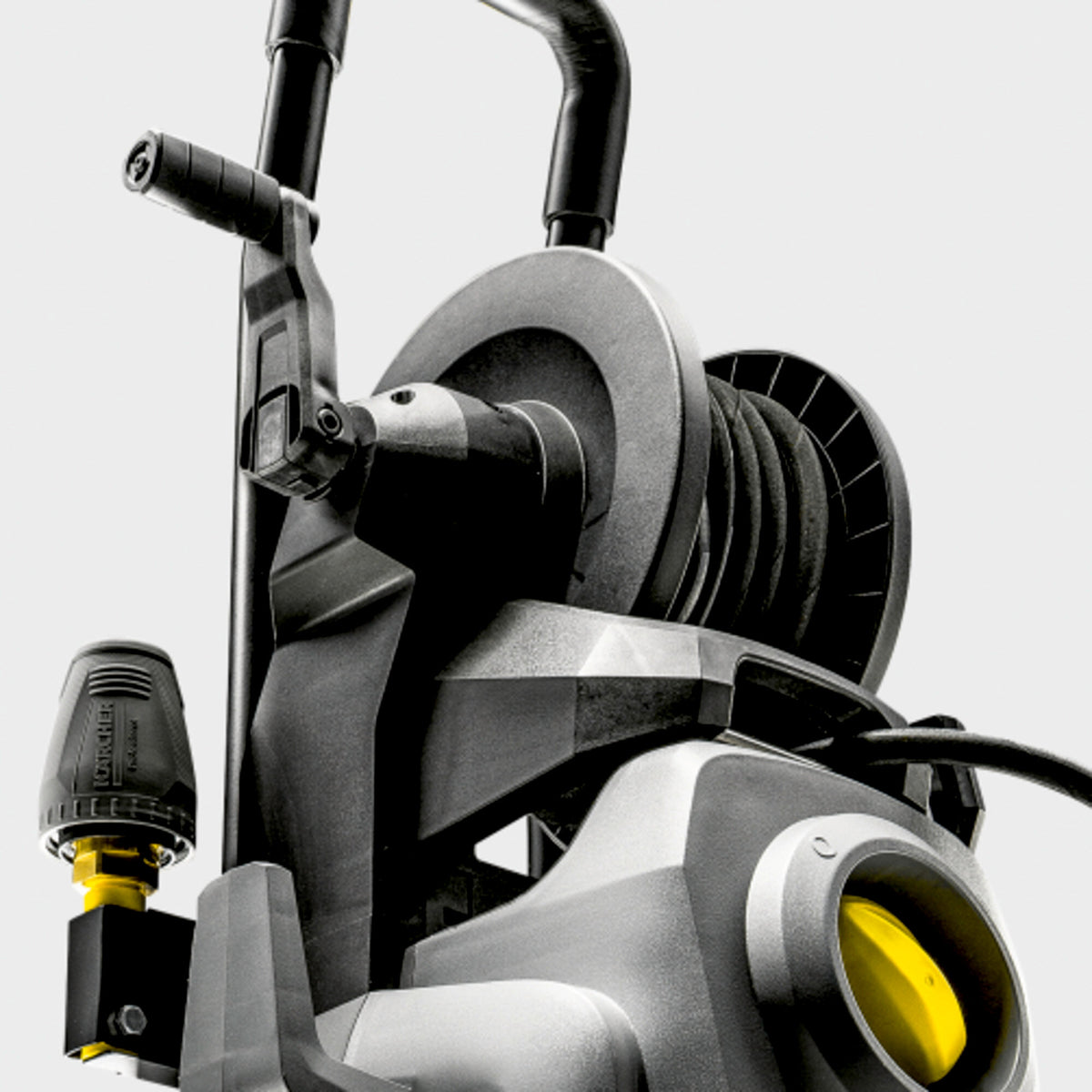

Manual reel and organised storage

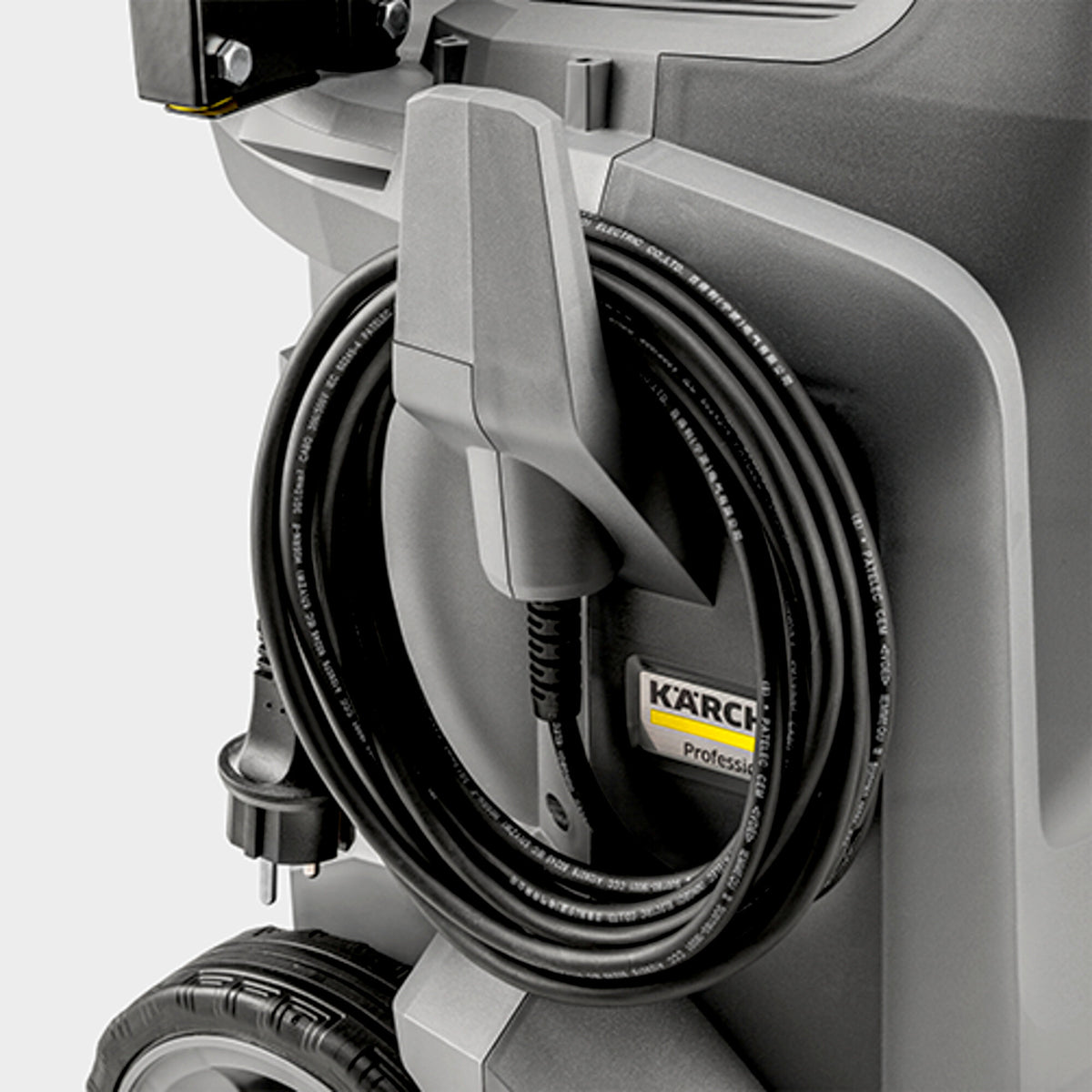

The built-in reel winds the high-pressure hose by hand. Nozzle holders, cable hooks and lance storage keep accessories together between jobs.
EASY!Lock connections
Quick-release threaded connections make accessory assembly and changes straightforward while maintaining a secure fit.
Working pressure and water supply
Working pressure is 110 bar; the separately stated maximum pressure is 160 bar. The inlet accepts water up to 60°C, but this cold-water machine does not heat the water.
Specifications
| Order number | 1.520-801.0 |
|---|---|
| Power supply | 1 phase / 200–240 V / 50 Hz |
| Flow rate | 500 L/h |
| Working pressure | 110 bar |
| Maximum pressure | 160 bar |
| Input power | 2.2 kW |
| Maximum inlet temperature | 60°C |
| High-pressure hose | 8 m |
| Spray lance | 840 mm |
| Nozzle size | 036 |
| Water inlet | 3/4″ |
| Hose reel | Integrated, manual |
| Dimensions (L × W × H) | 334 × 366 × 954 mm |
| Weight without accessories | 21 kg |
| Packed weight | 26.5 kg |
| Colour | Anthracite |
Product detail images
