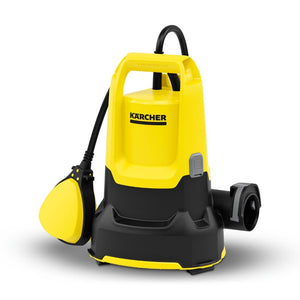

Kärcher SP 9.000 Flat Submersible Pump
Compact pump for clear or slightly dirty water, suitable for draining small pools and flooded areas. Maximum flow is 9,000 L/h, with particles up to 5 mm. Folding feet switch between normal pumping and shallow-water pick-up.
- Maximum flow
- 9,000 L/h
- Water
- Clear / slightly dirty; particles ≤5 mm
- Flat pick-up (manual)
- 1 mm
- Power cable
- 10 m
Included components
Pump with float switch, folding feet and hose connection piece (G1; 1″ / 1¼″ / 1½″). Hose and optional prefilter are not included.
Kärcher SP 9.000 Flat Submersible Pump
Product overview
Compact pump for clear or slightly dirty water, suitable for draining small pools and flooded areas. Maximum flow is 9,000 L/h, with particles up to 5 mm. Folding feet switch between normal pumping and shallow-water pick-up.

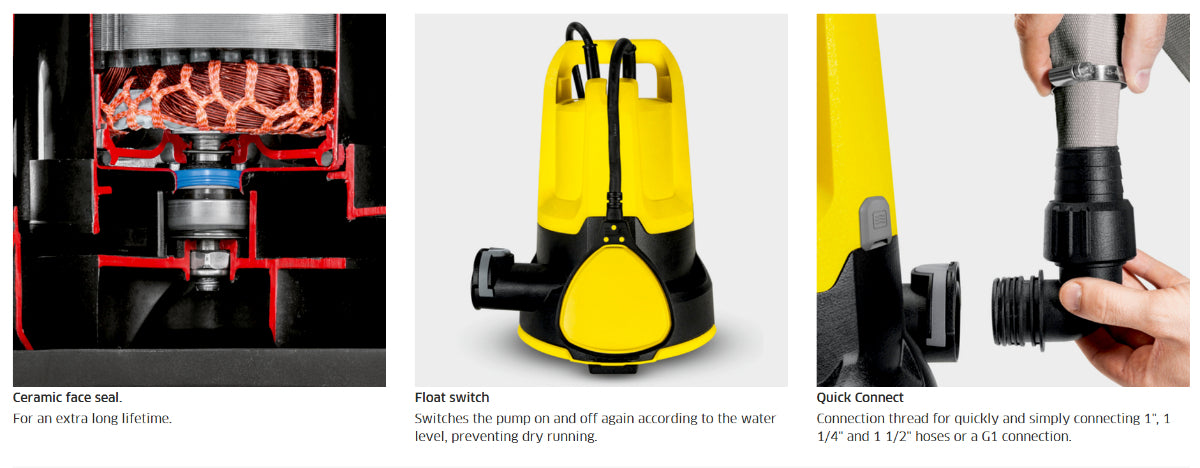

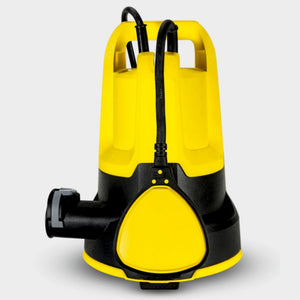

Float switch
The float starts and stops the pump as water levels change, helping prevent dry running in automatic mode. Fixing the float enables continuous manual operation; monitor the water level in this mode.
Flat pick-up
With feet folded in, manual operation starts at 7 mm water depth and reduces residual water to 1 mm. Extended feet support normal pumping with higher capacity. Automatic venting supports low-water starting.

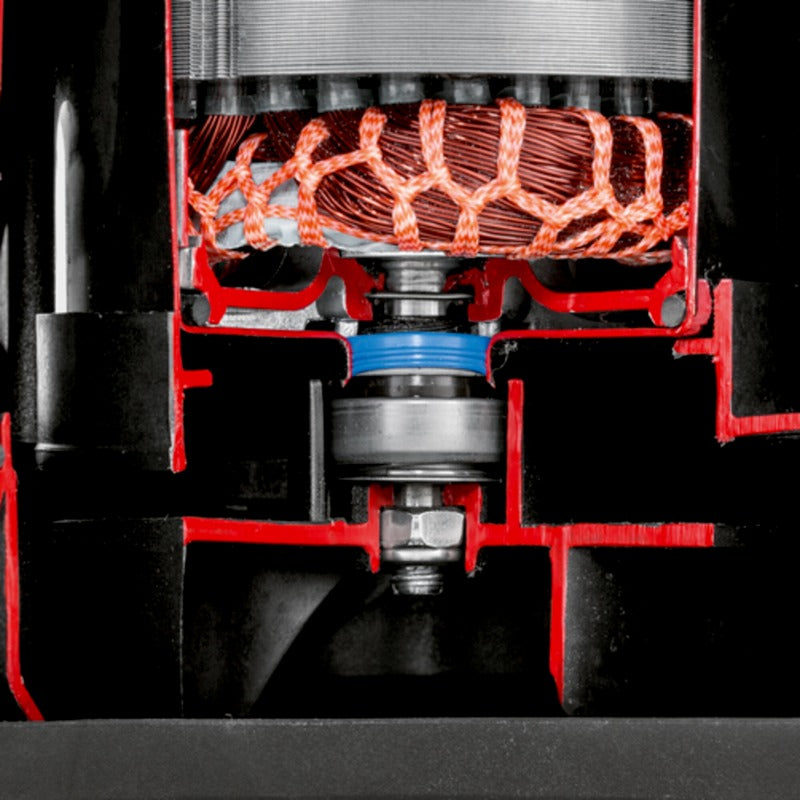

Ceramic face seal
The ceramic seal supports durability. The carrying handle can also be used as a rope holder for positioning the pump.

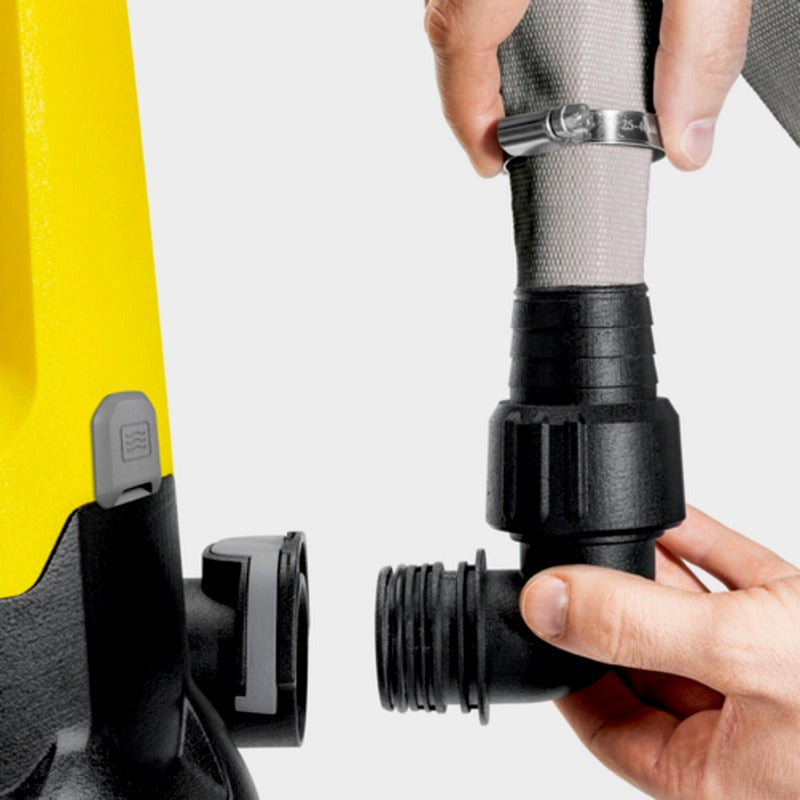

Quick Connect
The supplied connection piece accepts G1 connections and 1-inch, 1¼-inch or 1½-inch hoses. Quick Connect allows straightforward fitting and removal.
Optional prefilter
A separately sold prefilter protects against heavier soiling and reduces impeller blockage.
Specifications
| Model | SP 9.000 Flat |
|---|---|
| Input power | 280 W |
| Maximum flow | 9,000 L/h |
| Delivery head | 6 m |
| Maximum pressure | 0.6 bar |
| Maximum water temperature | 35°C |
| Maximum particle size | 5 mm |
| Maximum immersion depth | 7 m |
| Manual starting depth (feet folded) | 7 mm |
| Minimum residual water (manual) | 1 mm |
| Supplied hose connection | G1; 1″ / 1¼″ / 1½″ |
| Power cable | 10 m |
| Power supply | 230–240 V / 50 Hz |
| Dimensions (L × W × H) | 227 × 240 × 262 mm |
| Weight without accessories | 3.7 kg |
| Packed weight | 4.5 kg |
| Colour | Yellow |
An optional manufacturer five-year warranty extension is subject to applicable local terms and registration requirements; it is not an automatic store warranty.
