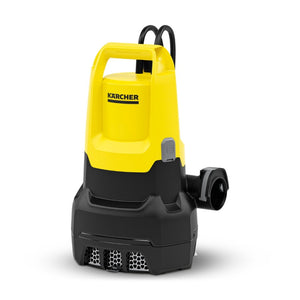

Kärcher Submersible Dirty Water Pump SP 22.000 Dirt
Pickup available at 20D, Lo wai village, Pui O
Usually ready in 5+ days
Kärcher Submersible Dirty Water Pump SP 22.000 Dirt
Kärcher Submersible Dirty Water Pump SP 22.000 Dirt
The SP 22,000 Dirt is the most powerful submersible dirty water pump from Kärcher. With up to 22,000 l/h, it is perfect for particularly challenging drainage tasks such as in large garden ponds, flooded basements or construction pits. The pumps can handle dirt particles of up to 30 mm. If larger dirt particles threaten to cause a blockage, the integrated stainless steel prefilter can be pulled down to protect the pump impeller. The slide ring sealing also used in the Professional range ensures an extra-long lifetime. There is even the option to extend the warranty to five years. The float switch enables other practical functions: It automatically switches the pump on and off depending on the water level, prevents dry running and its height can be adjusted. It can also be secured so that the submersible pump pumps out down to a depth of 35 mm during continuous operation. The Quick Connect connection thread also enables the quick and simple connection of 1", 1 1/4" and 1 1/2" hoses.

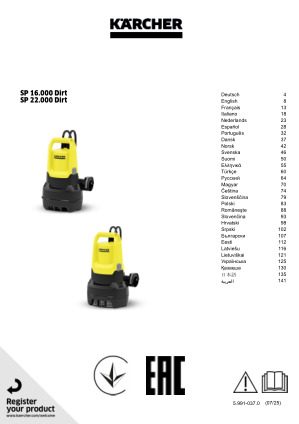

Operating instructions, incl. safety information
Features and benefits

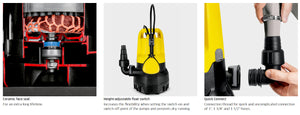

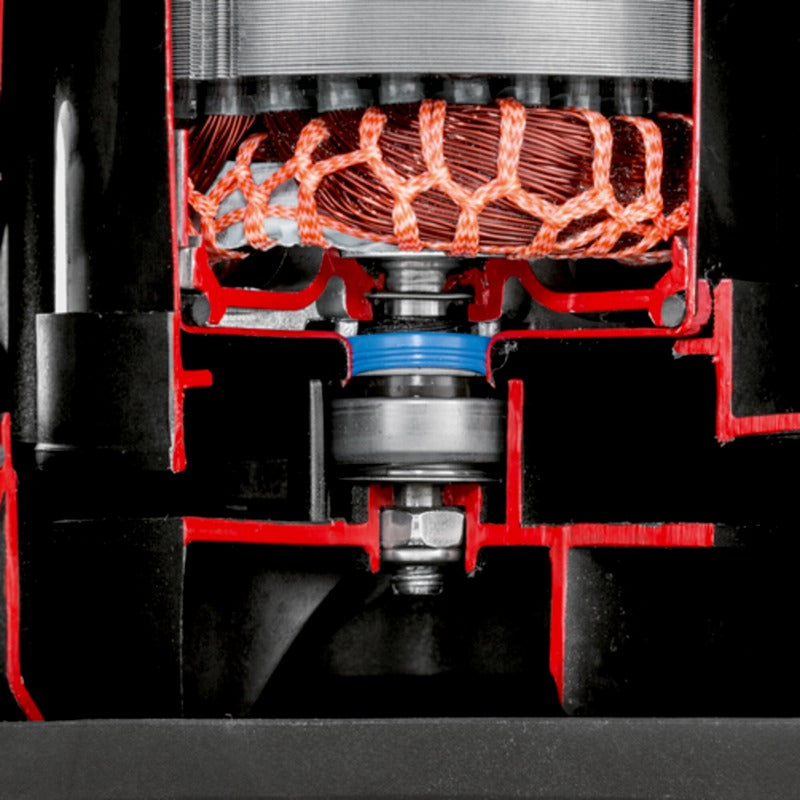

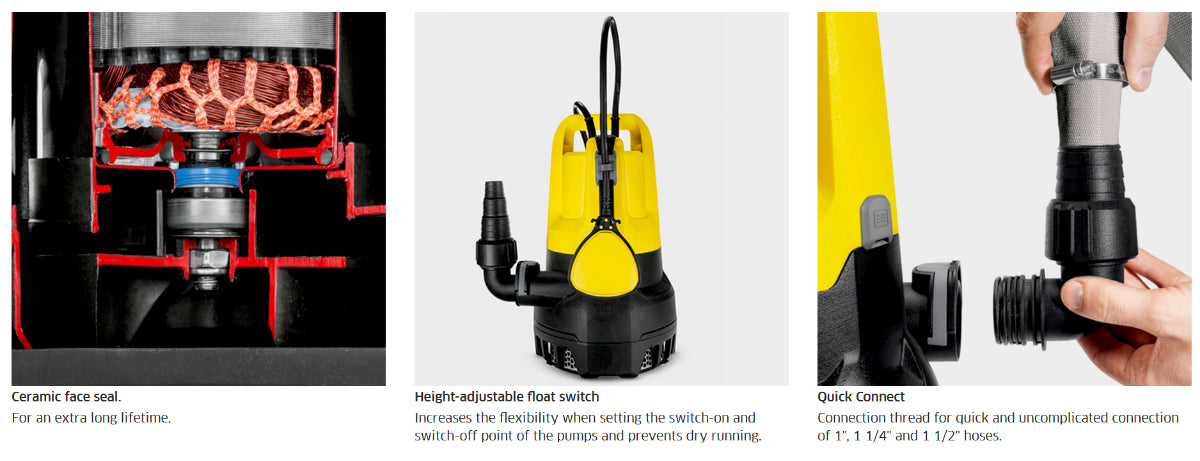

- Ceramic face seal — For an extra long lifetime.

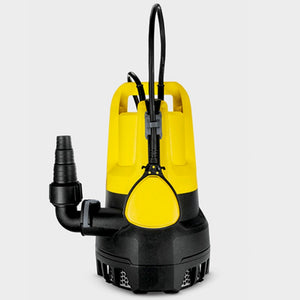

- Height-adjustable float switch — Increases the flexibility when setting the switch-on and switch-off point of the pumps and prevents dry running.

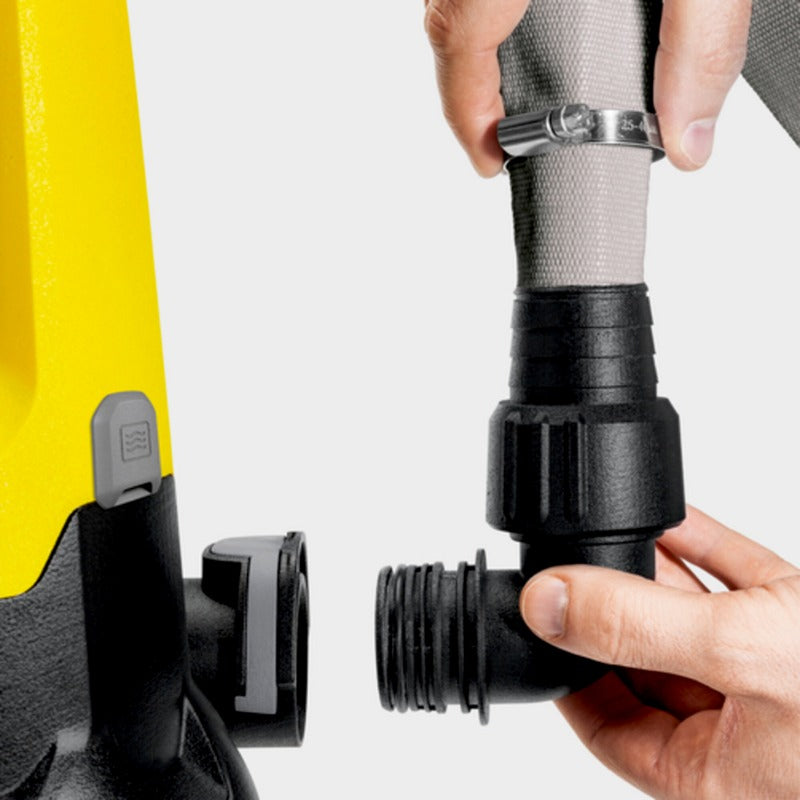

- Quick Connect — Connection thread for quick and uncomplicated connection of 1", 1 1/4" and 1 1/2" hoses.
- Designed for dirty water — Reliable pumping of water with dirt particles up to 30 mm in size.
- Possibility of fixing the float switch — For switching to continuous operation.
- Comfortable carrying handle — Comfortable to hold and can also be used as a rope holder.
- Robust and integrated stainless steel prefilter — Protects the pump against excessively heavy soiling and thus prevents the pump impeller from becoming blocked.
Specifications
Technical data
| Rated input power (W) | 750 |
| Max. flow rate (l/h) | < 22000 |
| Delivery temperature (°C) | max. 35 |
| Delivery head (m) | 8 |
| Pressure (bar) | max. 0,8 |
| Grain size (mm) | max. 30 |
| Immersion depth (m) | max. 7 |
| Min. residual water, manual (mm) | 35 |
| Residual water height (mm) | 35 |
| Connection thread | G1 1/2 |
| Pressure-side connection thread | G1/2 internal thread |
| Power cable (m) | 10 |
| Voltage (V) | 230 - 240 |
| Frequency (Hz) | 50 |
| Colour | Yellow |
| Weight without accessories (kg) | 6,5 |
| Weight incl. packaging (kg) | 7,5 |
| Dimensions (L × W × H) (mm) | 230 x 291 x 354 |
Scope of supply
- Hose connection piece: 1'', 1 1/4'', 1 1/2''
Equipment
- Comfortable carrying handle
- Easy hose connection thanks to Quick Connect
- Switching between manual/automatic operation: Possibility of fixing the float switch
- Flexible, height-adjustable float switch
- Integrated stainless steel pre-filter
- In automatic operation (auto), the pump automatically switches with the water level
- In manual operation, the pump runs continuously to ensure the minimum quantity of residual water
- Ceramic face seal.
Documents
Product informationOperating instructions, incl. safety information
Application areas
- Pumping water from garden ponds
- Use in event of flooding
- Draining building pits up to max. 100 m³
