Kärcher High-pressure cleaner HD 10/25-4 S
Kärcher High-pressure cleaner HD 10/25-4 S

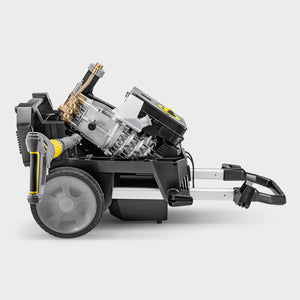

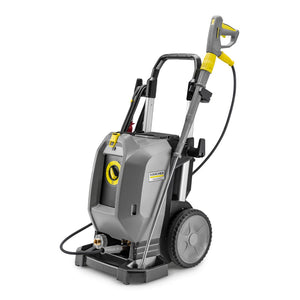

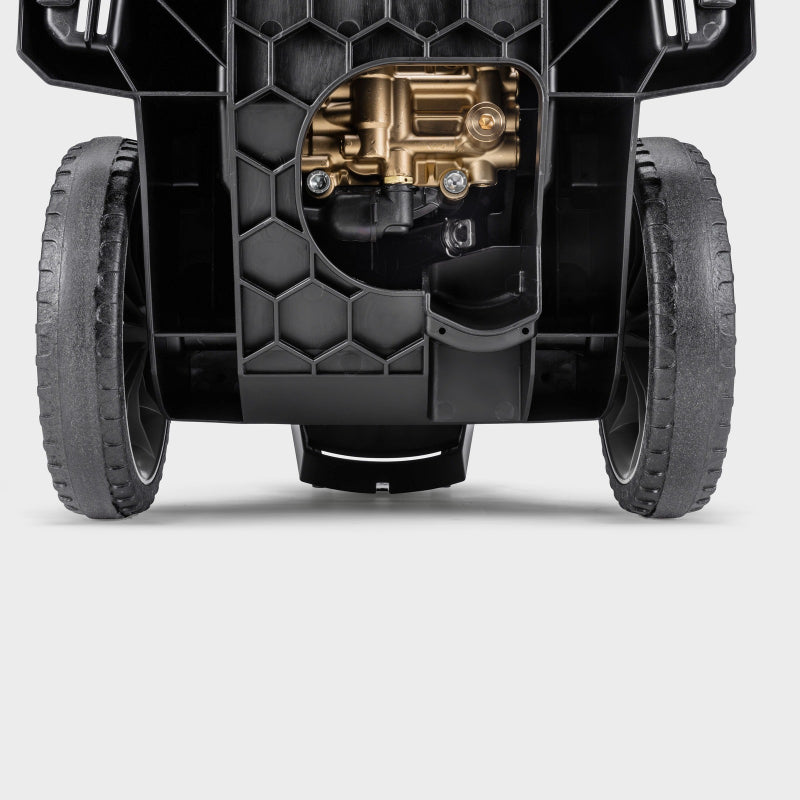

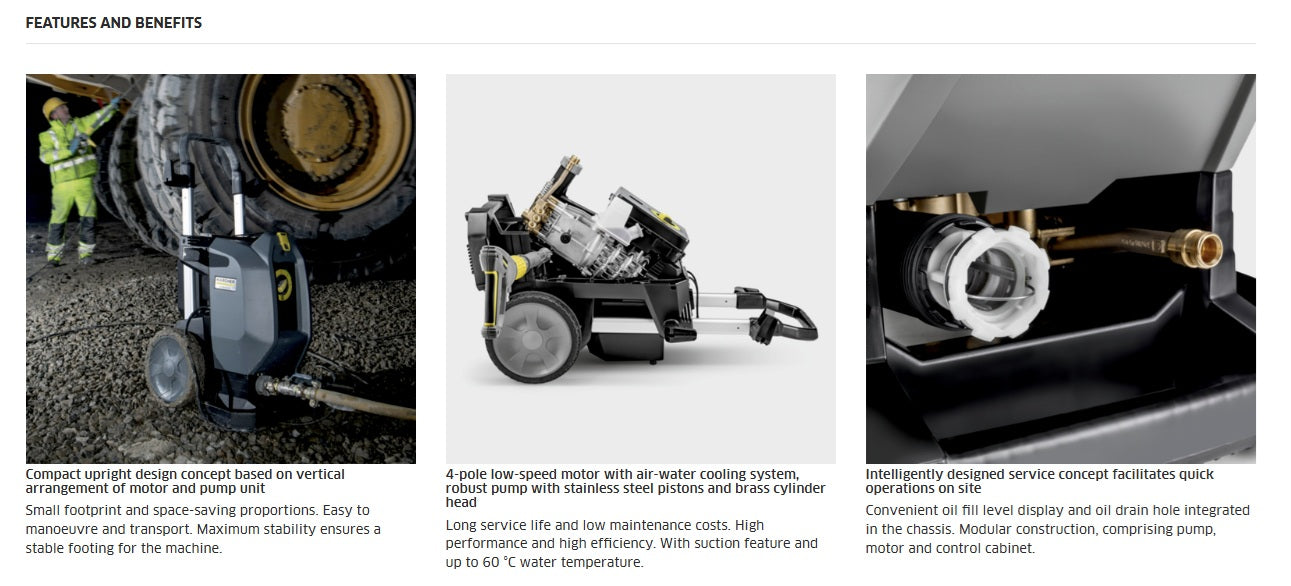

The HD 10/25-4 S cold water high-pressure cleaner takes ergonomic working to the next level. The practically designed EASY!Force Advanced trigger gun makes it effortless to use without any holding force. A rotating 1050-millimetre stainless steel lance delivers maximum efficiency. The Servo Control enables the user to control the pressure and water volume straight from the trigger gun/lance. Assistance systems and an LED status display also enhance the user-friendly design. You can count on Kärcher to use the best materials to guarantee the highest, longest-lasting quality. Working away inside the machine is a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head. The HD 10/25-4 S is driven by a 4-pole low-speed motor with air-water cooling system. Integrated aluminium frame carriers reduce the weight and provide a lightweight yet hard-wearing chassis, making crane loading an option. The upright structure, whereby the motor and pump unit is installed in a vertical arrangement, offers maximum portability in practice. The compact design also incorporates clever accessory storage such as a stowage compartment and adjustable hooks.
Product information
Operating instructions
Product information
Operating instructions

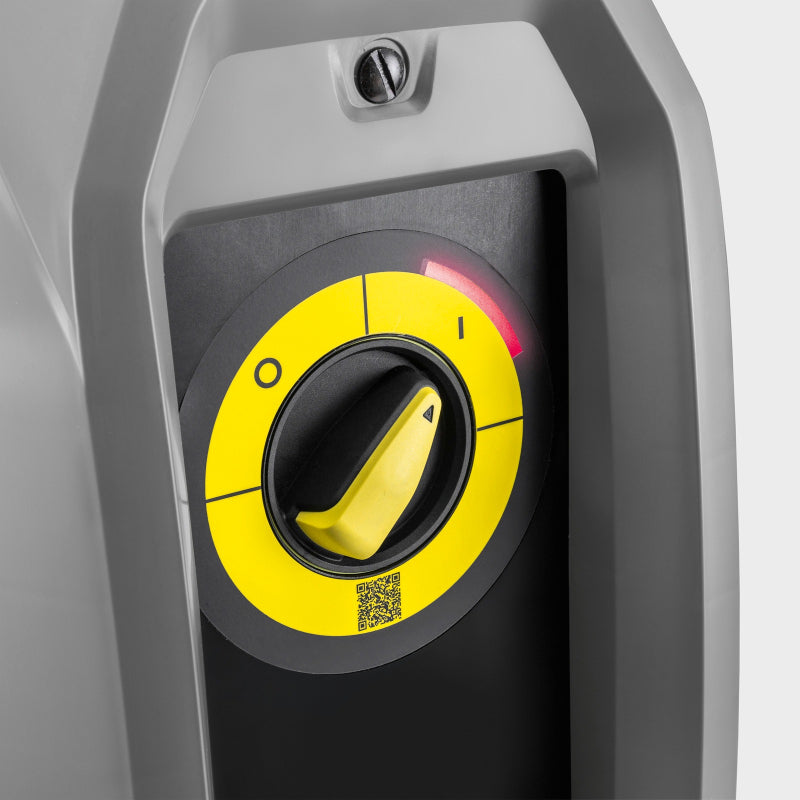

Assistance systems and LED status display
- Integrated electronics system for machine monitoring.
- Automatic switch-off in case of low voltage range or overvoltage.
- Switches off in case of leaks or phase failure.
Wide-ranging accessories with EASY!Lock
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- EASY!Force Advanced for fatigue-free work without any holding force.
- Rotating 1050 mm stainless steel lance.
Extensive range of accessories and attachment kits

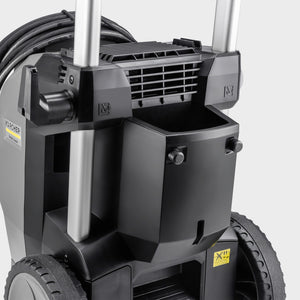

- Stowage compartment.

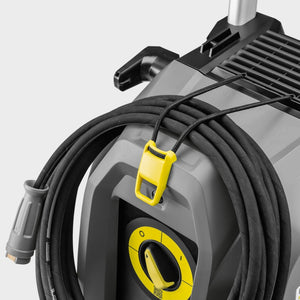

- Adjustable hooks, e.g. for storing second lance or electric cable.
- Storage for high pressure hose.
Specifications
Technical data
| Power supply (Ph/V/Hz) | 3 / 376 - 424 / 50 |
| Flow rate (l/h) | 500 - 1000 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 80 - 250 |
| Max. pressure (bar) | 280 |
| Connected load (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water inlet | 1″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 69.8 |
| Weight incl. packaging (kg) | 78.1 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Scope of supply
- Spray gun: EASY!Force Advanced
- High-pressure hose length: 10 m
- High-pressure hose type: Premium quality
- High-pressure hose specification: DN 8, 315 bar
- Spray lance: 1050 mm
- Power nozzle
- Servo Control
Equipment
- 4-pole three-phase motor with air and water cooling
- 3-piston axial pump: with stainless steel pistons
- Pressure cut-off
- Integrated water fine filter
- Motor protection electronics with LED display
- Sight glass for oil level
- Brass water inlet
